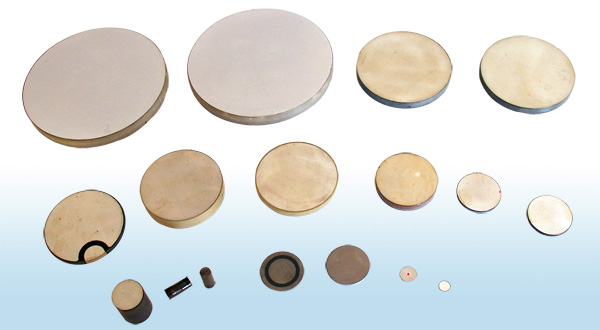

Piezoelectric ceramic wafers for ultrasonic polishing machine

Pbulish：admin　　time：2008年03Month21Day

型號及規格	外型尺寸 直徑×厚度	主要技術特征
型號及規格	外型尺寸 直徑×厚度	fr(MHz)	Kr
HF-28/2MC	φ24/φ8× 5	64	0.43
HF-25/1MC	φ30/φ10×5	50	0.43
HF-20/1MC	φ35/φ16×5	0	0.42
